Regular model incinerator for market with burning rate from 10kgs to 500kgs per hour and we always proposal customer send us their require details, like waste material, local site fuel and power supply, incinerator operation time, etc, so we can proposal right model or custom made with different structure or dimensions.
Incinerator Model YD-100 is a middle scale incineration machine for many different usage: for a middle hospital sickbed below 500 units, for all small or big size family pets (like Alaskan Malamute Dog), for community Municipal Solid Waste Incineration, etc. The primary combustion chamber volume is 1200Liters (1.2m3) and use diesel oil or natural gas fuel burner original from Italy.

Medical Incinerator Installation and Operation Video

Posted on 2015-06-162015-06-16 by waste-incinerators

Small Scale Incinerator Operation Video

Posted on 2015-06-102015-06-15 by waste-incinerators

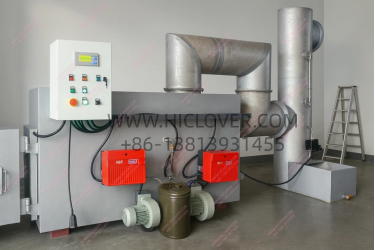

PLC based control box for incinerator

Posted on 2023-09-222023-09-21 by waste-incinerators

i. Circular Mild Steel / Stainless steel with minimum thickness

3mm, self-supported flange section chimney and should have suitable door/window at the base for cleaning.

ii. Proper port for taking exhaust gases sample to monitor emission levels as per international standards provided with a cover to be opened and closed when needed without affecting the function of chimney.

iii. Chimney should have height of at-least 15 meters from ground

level. incinerating waste

small scale incinerator

portable waste incinerator

10. Electrical Control

i. PLC based control box with hinged sealed door, pre-installed control circuitry should be rugged enough to withstand the temperature effect of the incinerator.

ii. It should house the ignition burner time, feed interval timer, shutdown timer post combustion chamber temperature controller, control for burner, blower fans and gas washer.

iii. Digital display of temperature and set timing parameters.

Tel: +86-25-8461 0201

Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: sales@hiclover.com
Email: hicloversales@gmail.com

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour
Control Mode	PLC Auto.	PLC Auto.	PLC Auto.	PLC Auto.
Combustion Chamber	100L	210L	330L	560L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm
Secondary Chamber	50L	110L	180L	280L
Smoke Filter Chamber	Dry Scrubber	Dry Scrubber	Dry Scrubber	Dry Scrubber
Feed Mode	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V
Power	0.75Kw	0.83Kw	0.99Kw	1.2Kw
Diesel Oil Consumption (kg/hour)	Ave.8.4	Ave.10.9	Ave.13.3	Ave.16.9
Natural Gas Consumption (m3n/hour)	Ave.10.1	Ave.13	Ave.16	Ave.20.2
Temperature Monitor	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes
Items/Model	TS100(PLC)	TS150(PLC)	TS300(PLC)	TS500(PLC)
Burn Rate (Average)	100 kg/hour	150 kg/hour	300 kg/hour	500 kg/hour
Control Mode	PLC Auto.	PLC Auto.	PLC Auto.	PLC Auto.
Combustion Chamber	1200L	1500L	2000L	3000L
Internal Dimensions	120x100x100cm	150x100x100cm	170x120x100cm	210x120x120cm
Secondary Chamber	600L	750L	1000L	1500L
Smoke Filter Chamber	Dry Scrubber	Dry Scrubber	Dry Scrubber	Dry Scrubber
Feed Mode	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V
Power	1.38Kw	1.69Kw	2.57Kw	4.88Kw
Diesel Oil Consumption (kg/hour)	Ave.20.4	Ave.24.2	Ave.33	Ave.44
Natural Gas Consumption (m3n/hour)	Ave.24.5	Ave.29	Ave.39.6	Ave.52.8
Temperature Monitor	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes

About Us HICLOVER

Posted on 2021-12-082021-12-08 by waste-incinerators

HICLOVER is growing brand for environmental protection field, and market share with most of Africa,

Middle East, Southeast Asia countries and part of North America, Europe territory. We are trusted partner

for governmental organizations, non-profit organizations, international contractors, logistics organizations,

military, pet cremation business owners, etc. We have export experience more than 40 countries, including

war zone like Iraq, Afghanistan, Somalia, South Sudan.

We are china incinerator manufacturer, contractor and exporter. Manufacturer make reasonable price for

incinerator customer, supply medical incinerator, hospital incinerator, animal incinerators, hog

incinerators, pet cremation equipment, small incinerator, pet incinerator, animal incinerator, portable

incinerator, small animal incinerator, infectious waste pyrolysis machine, laboratory incinerator.

HICLOVER help customer reduce purchase budget, custom made function, quality products and friendly

service.

Incinerator Items/Model	HICLOVER TS5(PLC)	HICLOVER TS10(PLC)	HICLOVER TS20(PLC)	HICLOVER TS30(PLC)
Burn Rate (Average)	5-10 kg/hour	10-20 kg/hour	20-30 kg/hour	30-50 kg/hour
Feed Capacity(Average)	10kg/feeding	20kg/feeding	40kg/feeding	60kg/feeding
Control Mode	PLC Automatic	PLC Automatic	PLC Automatic	PLC Automatic
Combustion Chamber	52L	100L	210L	330L
Internal Dimensions	50x35x30cm	50x50x40cm	65x65x50cm	75x75x60cm
Secondary Chamber	26L	50L	110L	180L
Smoke Filter Chamber	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual
Voltage	220V 2P	220V 2P	220V 2P	220V 2P
Power	0.5Kw	0.5Kw	0.5Kw	0.5Kw
Burner Type	Italy Brand	Italy Brand	Italy Brand	Italy Brand
Oil Consumption (kg/hour)	4	6	8	12
Gas Consumption (m3/hour)	6.2-11.4	6.2-11.4	8-15.7	9.8–20
Temperature Monitor	Yes	Yes	Yes	Yes
Temperature Thermometer	Corundum Probe Tube	Corundum Probe Tube	Corundum Probe Tube	Corundum Probe Tube
Temperature Protection	Yes	Yes	Yes	Yes
Automatic Cooling	Yes	Yes	Yes	Yes
Automatic False Alarm	Yes	Yes	Yes	Yes
System Testing Model	Yes	Yes	Yes	Yes
Time Setting	Yes	Yes	Yes	Yes
Progress Display Bar	LCD Display	LCD Display	LCD Display	LCD Display
Oil Tank	200L	200L	200L	200L
Oil Tank Stand	190cm Height	190cm Height	190cm Height	190cm Height
Liquid level Display	Yes	Yes	Yes	Yes
Feeding Door	20x20cm	30x30cm	45x40cm	55x50cm
Chimney	2Meter	3Meter	3Meter	5Meter
Chimney Type	Stainless Steel 304	Stainless Steel 304	Stainless Steel 304	Stainless Steel 304
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1300℃	1000℃-1300℃	1000℃-1300℃	1000℃-1300℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1000kg	1500kg	2200kg	3000kg
External Dimensions	120x80x110cm	140x90x120cm	160x110x130cm	175x120x140cm

Top Feeding Door Solid Waste Incinerators HICLOVER

Posted on 2020-08-072020-08-07 by waste-incinerators

HICLOVER Top Feeding Door Waste Incinerators

▲▲▲Large Feeding Door

▲▲▲Better for Animal Waste Cremation

▲▲▲HICLOVER Brand Section

***Primary Combustion Chamber

***Secondary Combustion Chamber

***Smoke Filter Chamber

***Optional Wet Scrubber System(1 section or 3 sections)

Phone: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/

Email: sales@hiclover.com
Email: hicloversales@gmail.com

Nanjing Clover Medical Technology Co.,Ltd.

Items Side Loading Door Top Loading Door

Cost Cheap High cost

Manufacture Tech. Easy A litter difficult

Safty safe safer

Incinerator Shape L/ I L

Loading manual big door can be by Forklift

Land occupation small big

Ash door same with feeding door or alone alone

market share Most-CHINA/USA/INDIA Few- UK/USA

Dooring open type Manual Pry bar/Hydraulic pressure

Dooring Open size small big

Better for medical bag waste animal waste

open when burning safer, can feed waste, few smoke not safe, cannot feed waste, most smoke

parts of an incinerator

physical method of disposing hazardous chemical waste

portable incinerators types

proper ways of waste disposal in the community

questionnaire to ask about incinerators for collection of data

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-08-07

Small incinerators for the solid waste equipment in waste management yard HICLOVER TS150(PLC)

Posted on 2020-07-082020-07-08 by waste-incinerators

Small incinerators for the solid waste equipment in waste management yard.

Items/Model	TS150(PLC)
Principle	Waste Incineration Treatment
Burn Rate	Average 50-100 kg/hour
Feed Capacity	Average 750kg/feeding
Control Mode	PLC(Programmable Logic Controller Incinerator)
Combustion Chamber	1570L
Internal Dimensions	150x100x105cm
Secondary Chamber	750L
Smoke Filter Chamber	Yes
Feed Mode	Manual
Voltage	210/230V 50/60Hz
Power	0.9Kw
Oil Consumption (kg/hour)	Average 20.4(D.O)
Thermal capacity(kw/hour)	166-332
Gas Consumption (m3/hour)	***
Temperature Monitor	Digital Display
Temperature Protection	Yes
Oil Tank	300L
Feed Door	80x60cm
Chimney	10Meter
Chimney Type	Stainless Steel
1st. Chamber Temperature	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Gross Weight	8500kg
External Dimensions	300x160x280cm(without chimney)

Incinerator comprising of a two-stage unit of a primary loading chamber and a secondary after burner chamber. The after-burner system draws hot gases from the primary chamber and ensures a clean burn at 850-1150 degrees Celsius.

Primary Chambe「 volume (m3) Not less than 1.54

Load capacity (kg) Not less than 750

Nominal burn rate (kg/hr) Less than 50

Burn Rate (kg/hr) Plus 50

Thermal capacity (kw/hr) Plus or minus 190

Power supply 50/60hz 210/230v

Diesel Yes

Prefabricated robust mild steel casing not less than lOmm, seam welded and suitably stiffened I braced where necessary. Steel structured painted using high grade paint system. Primary and secondary chamber lining thickness of not less than 180mm, rated at 1430 degrees Celsius. At least three layers of

paint standard as 800 Celsius. thickness 164mm, rated 1750 Celsius

refractory lining in the primary and secondary chambers of not less than 180mm total thickness providing increase fuel efficiency. Lightweight resilient refractory fibre insulation lid providing a tight seal giving thermal efficiency. Weather proof combustion fuel pipes and electrical systems to resist marine type of weather.

Primary Chamber:

Fully insulated internal refractory lining,constructed from high grade refractory brick. High alumina content refractory bricks. Manual operated access lid. Waste ignition burner, temperature controlled on and off with internal air fans. heavy duty 价ebrick 1750 Celsius by wall. refractory cement by Secondary Chamber: bottom and toρ．

Fully insulated internal refractory lining,constructed from high grade low thermal mass insulation. Secondary chamber burnout burner, temperature controlled on and off with internal air fans. Integrated combustion burner air fans with an automatically controlled distribution. Temperature sensor mounted

at the top of the chamber ensuring the chamber reaches the necessary temperature 850I 1100 Degrees Celsius minimum. heavy duty firebrick 1750 Celsius by wall. refractory cement by bottom and toρ．

operation temperature 1000-1200 Celsius

Waste loading and De-Ashing:Loading through the main access door. At the end of every incineration, ash should be discharged through the loading door.primarv chamber: feedina door臼lso ash door). secondary chamber:

http://www.waste-incinerator.net/

http://www.waste-incinerator.net/post-sitemap.xml

HICLOVER – Medical Environmental, WWW.HICLOVER.COM, Waste Incinerators,

Medical Waste Incinerator,Pet Animal Cremation, Solid Waste Incinerators

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator(Containerized Mobile Incinerator)

Tel: +86-25-8461 0201

Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: sales@hiclover.com
Email: hicloversales@gmail.com

Nanjing Clover Medical Technology Co.,Ltd.

https://www.google.com/search?ei=EwsCX9fjEM_L0PEPks2xYA&q=site%3Awaste-incinerator.net&oq=site%3Awaste-incinerator.net&gs_lcp=CgZwc3ktYWIQA1AAWABg34cGaABwAHgAgAH6A4gB-gOSAQM1LTGYAQCqAQdnd3Mtd2l6&sclient=psy-ab&ved=0ahUKEwiXufvrzrbqAhXPJTQIHZJmDAwQ4dUDCAs&uact=5

2020-07-08

: smart

ES Fiber Production Line and 400mm Melt blown Production Line and 1600mm Melt blown Production Line and and N95 Mask Machine and Disposable Mask Machine

Posted on 2020-04-202020-04-20 by waste-incinerators

1. N95 and Disposable Mask Machine

2. 400mm and 1600mm Melt blown Production Line

3. ES Fiber Production Line

N95 Face Mask Machine Production Line

Melt blown Production Line

A.)Optional Capacity: 1600mm

Efficiency: 95-97%

FOB Term Price: USD per set

Price Valid: 5days.

Ave.60 Days ready for shipping.

In stock Price: USD per set

B.)Optional Capacity: 400mm

Efficiency: 40-50% .

FOB Term Price: USD per set

Price Valid: 5days.

Ave.20 Days ready for shipping.

Payment: TT 70% In advance, TT 30% before leave factory

Shipping: 1*20′ container per set, Ave. 2000Kgs.

Main Parts: Extruder, mold, winder, oven, ultrasonic

Daily Capacity：100-150Kgs/24Hours

Screw extruder：100-150Kgs

Motor power: 15KW frequency conversion speed regulation
Reducer speed ratio: 1:10 or 1:16
Screw length to diameter ratio: 30: 1
Screw diameter: 50mm
Winding machine diameter: ￡ 630mm
Winding machine drive motor power: 0.55kw
Speed ratio of winder drive reducer (if any): 1:71
Air heater power: 15kw
Power of vacuum calciner: 12kw
The size of vacuum calciner: 500 × 300 × 200
Ultrasonic power: 1800, frequency 28kHZ
Ultrasonic sink size: 800 × 300 × 250
